SFRA (Sweep Frequency Response Analysis) Testing Service
Using OMICRON FRANEO 800 & MEGGER FRAX 101Test Kits
APN ELECTROTECH Engineering Service offers advanced SFRA Testing Services using globally trusted equipment such as OMICRON FRANEO 800 and MEGGER FRAX 101 to accurately assess the mechanical and electrical integrity of power transformers and Reactor
SFRA testing is a proven diagnostic method for detecting winding displacement, deformation, core movement, shorted turns, and transport-related damages without opening the transformer.
What is SFRA Testing?
Sweep Frequency Response Analysis (SFRA) measures the frequency response of transformer windings over a wide frequency range.
Any deviation in the response curve indicates internal mechanical or electrical changes inside the transformer.
SFRA is highly sensitive and is recommended for:
New transformer baseline testing
Post-transport inspection
After fault or short-circuit events
Periodic condition assessment
Test Equipment Used

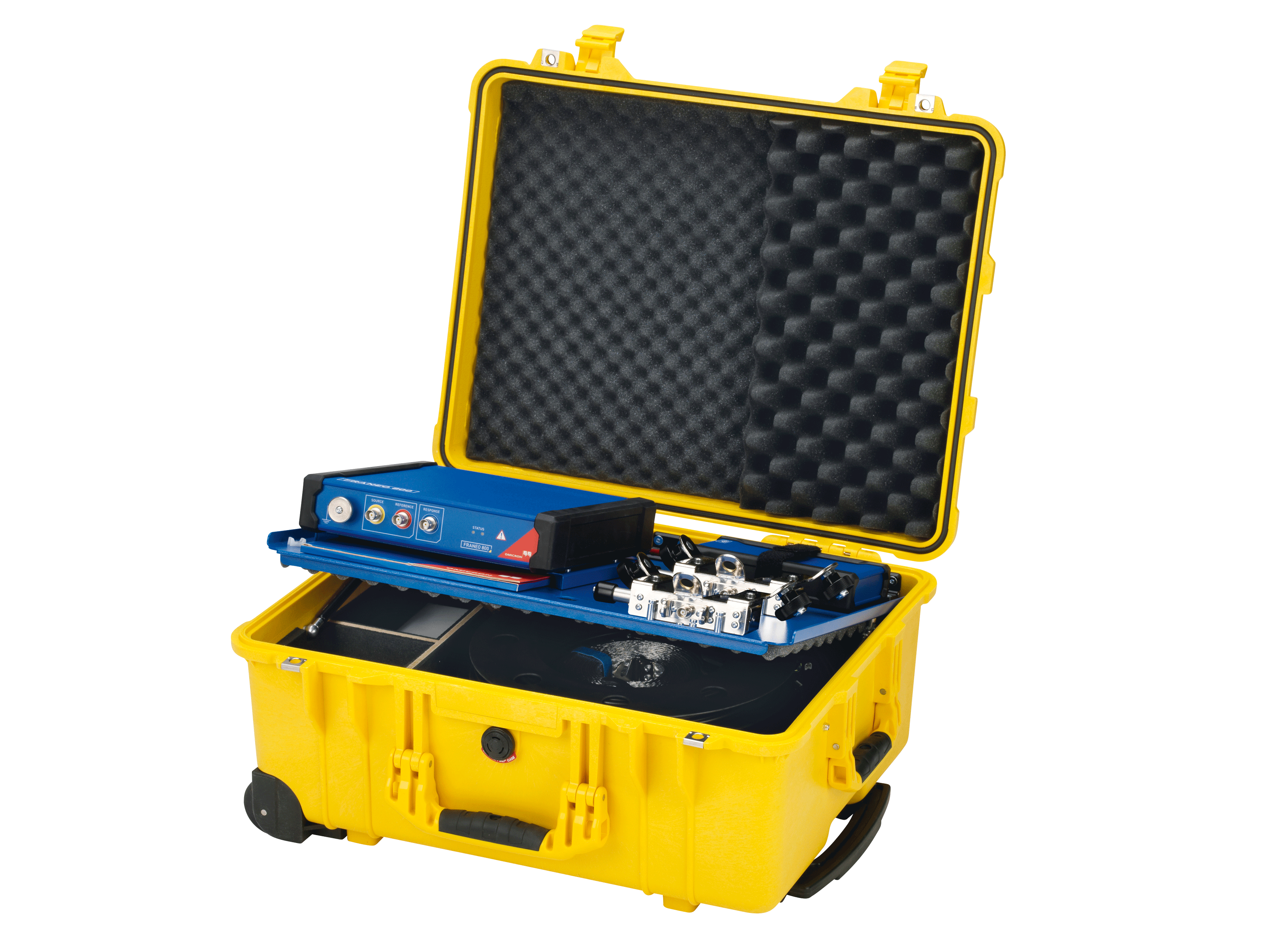

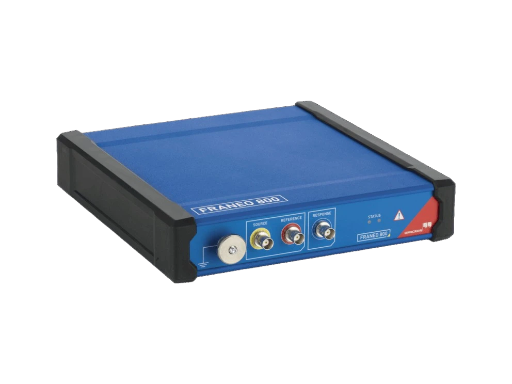

OMICRON FRANEO 800
High-accuracy, wide-band SFRA system
Excellent noise immunity for substation environments
Fast testing with stable and repeatable results
Suitable for EHV, HV, and distribution transformers

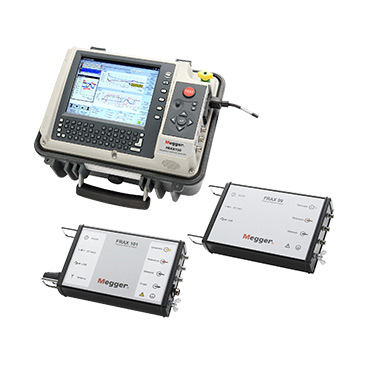

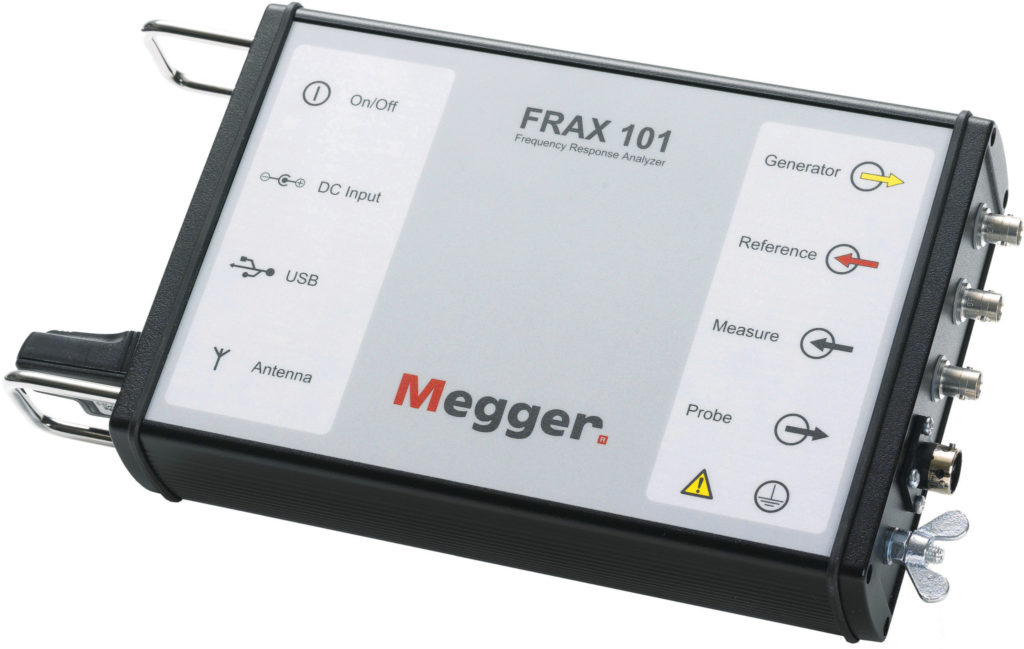

MEGGER FRAX101
Compact and reliable SFRA analyzer
High dynamic range and resolution
Ideal for on-site transformer diagnostics
Industry-proven performance and easy comparison analysis
Transformers Covered
Power Transformers (EHV / HV / MV)
Distribution Transformers
Generator Transformers
Auto Transformers
Reactor Transformers
SFRA Test Configurations
End-to-End Measurement
End-to-Ground Measurement
Phase-to-Phase Comparison
Historical (Fingerprint) Comparison
Sister Unit Comparison
Key Benefits of SFRA Testing
✔ Early detection of winding displacement
✔ Identification of mechanical damage without dismantling
✔ Verification after transportation or relocation
✔ Supports condition-based maintenance strategy
✔ Prevents unexpected transformer failures
Standards & Guidelines Followed
IEC 60076-18
IEEE C57.149
OEM Recommended Practices
Deliverables
Detailed SFRA Test Report including:
Frequency response plots
Phase-wise comparison
Deviation analysis
Observations & condition assessment
Clear recommendations
Why Choose APN Electrotech for SFRA Test?
Skilled and experienced testing engineers
Dual-kit capability: OMICRON + MEGGER
Accurate interpretation and professional reporting
Safe testing practices and quick turnaround
Suitable for utilities, industries, EPCs & renewable plants
